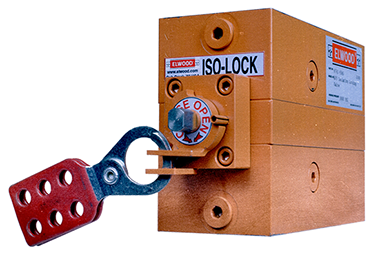

Elwood's ISO-Lock Isolation Valve is one of the most unique products Elwood has developed. This product has many applications in both mobile hydraulic and industrial hydraulic settings.
This isolation valve offers the ability to lockout all ports with one simple turn and then locked out via a Hasp. Since this valve is a sandwich valve, you can remove the stack of valves above without disrupting operation of the system. This allows for maintenance to occur on a system with greater efficiency.
The ISO-Lock valve is offered in both carbon steel and stainless steel options with many different valve patterns.
If Elwood's standard line of ISO-Lock Valves does not fit your system's requirements, please request a custom design and our team will design the valve to fit your needs!
Features
-
Sizes industry standard patterns NFPA/ANSI
- D03, D05, D07, D08, D10, P06
- Capacities to 350 GPM (1,300 LPM)
- Working pressures to 6,000 PSI / 414 bar
- Provides positive isolation of ports
- Fast and easy installation
- Allows for system diagnostics
- Designed to operate with low viscosity fluids, raw water, and oil
Material
- Standard Carbon Steel with Black Oxide Finish
- 400 Series Stainless Steel
- 316 Series Stainless Steel available upon request.
Port Options
- Standard Port - Lever on B-Port Side
- Tank Port - Lever on T-Port Side
Custom specifications available upon request.
Request a quote here or below and include any custom requirements if needed.
