PACKED SPOOL
4-WAY VALVES
Brochure # 82

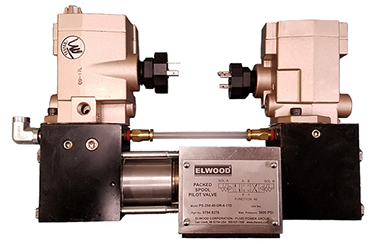

Packed Spool 4-Way Directional Control Valve
Ordering Info.
Packed Spool 4-Way Directional Control Valve Cutsheet
Summary
Specifications
Quote
Elwoods Packed Spool 4-way valve is a standard product that has stood the test of time. This valve is a Zero Leak valve will run consistently in your system whether it is a water based or oil system.
It can be used to isolate and to simultaneously bypass a sampling cylinder installed on a pressurized water line allowing for machines to run properly for years to come. Easy maintenance allows for this valve to be a number one choice for our customers.
If Elwood's standard line of Packed Spool 4-Way Directional Control Valves do not fit your system's requirements, please request a custom design and our team will design the valve to fit your needs!
Features
- Manifold Mounting
- Capacities to 20 GPM / 75 LPM
- Working pressures to 6,000 PSI / 414 bar
- Designed to operate with low viscosity fluids and raw water
- Zero leakage
-
Stainless steel components
- Excellent corrosion resistance
- High reliability
- Long-lasting performance
- Multiple function configurations
- Air/electrical or manually operated
Mounting Patterns
- ANSI D02
- NFPA D05
- CETOP-5
Accessories
Modular Valves
- Check Valve
- Flow Control Sandwich Plate
- Filter Block Assembly
Subplates
- Side Ported
- Bottom Ported
Custom specifications available upon request.
Request a quote here or below and include any custom requirements if needed.
