Pressure Control Valves
Summary
Specifications
Quote
Pressure Control Valves relieve, reduce, or stop system pressure. The system pressure is set by adjusting the pilot relief control valve. For the valve's pressure setting, a pressure balance on the main spindle allows the spring to hold a valve in a closed or open position (relief or reducing valves, respectively). When the system pressure working on the pilot poppet exceeds the set pressure, a pilot flow is established to the external drain.
If Elwood's standard line of Pressure Control Valves does not fit your system's requirements, please request a custom design and our team will design the valve to fit your needs!
Valve Types
-

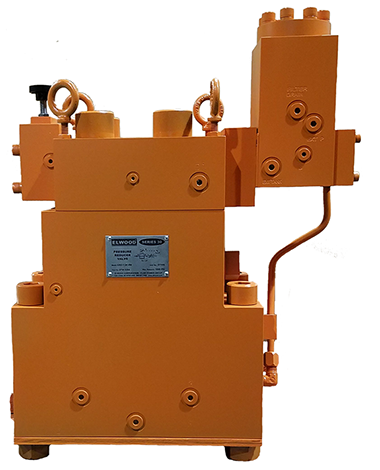

Pressure Control Valves - Relief or Reducer
- Capacities to 1,000 GPM / 3,800 LPM
-
Proportional Pressure Control Valves - Relief, Reducer, or Dual
- Capacities to 300 GPM / 1,140 LPM
- Working pressures to 6,000 PSI / 414 bar
- Designed to operate with low viscosity fluids and raw water
-
Removable stainless steel internals
- Excellent corrosion resistance
- High reliability
- Long-lasting performance
- Reversible soft composite disc
-
Fluid Flow Technology
- V-Notch Fluid Flow
- Shield Seat Design
- Inverse Fluid Flow
Mounting Types
- Manifold Mounting (standard)
- NFPA P-06 (available for A-Size only)
- SAE Flange (available for C- through G-Sizes only)
Custom specifications available upon request.
Reducing/Relieving Packages Available
[PACKAGE INFO HERE]
Request a quote here or below and include any custom requirements if needed.
