STOP
VALVES
Summary
Specifications
Quote

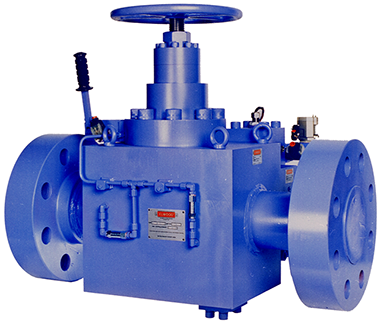

The DIN cartridge style Stop Valve operates using a manual hand wheel in combination with a manually operated pneumatic/hydraulic pilot valve and piston. The pilot valve controls the movement of the piston to open and close the valve. The manual hand wheel is used to provide a positive lock down of the valve.
If Elwood's standard line of Stop Valves does not fit your system's requirements, please request a custom design and our team will design the valve to fit your needs!
Features
- Sizes 2" through 10"
- Capacities to 3,400 GPM (13,000 LPM)
- Working pressures to 6,000 psi (414 bar)
- Designed to operate with low viscosity fluids and raw water
-
Removable stainless steel internals
- Excellent corrosion resistance
- High reliability
- Long-lasting performance
- Manual or hydraulically operated pilot
- Reversible soft composite disc
Fluid Flow Technology
- V-notch fluid flow
- Shield seat design
- Inverse fluid flow
Custom specifications available upon request.
Request a quote here or below and include any custom requirements if needed.
