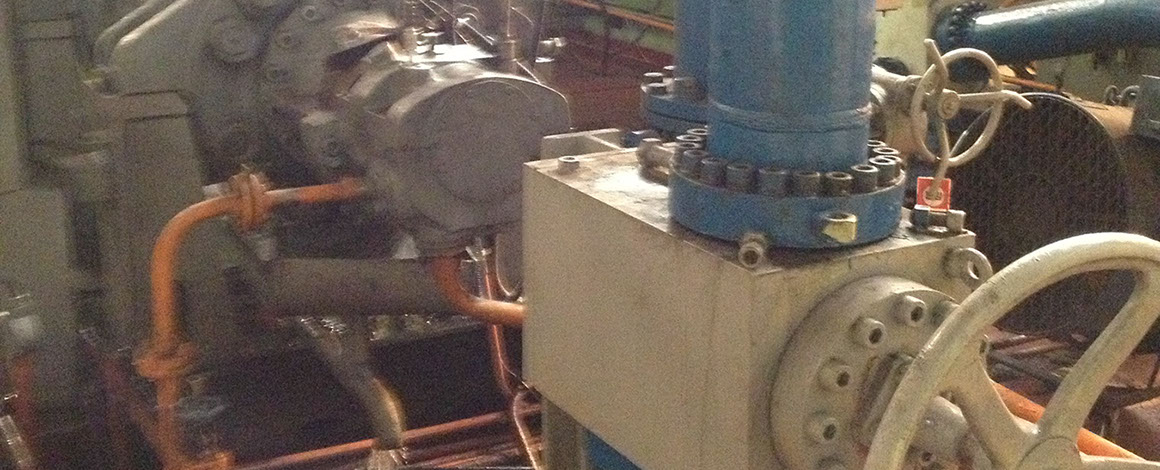

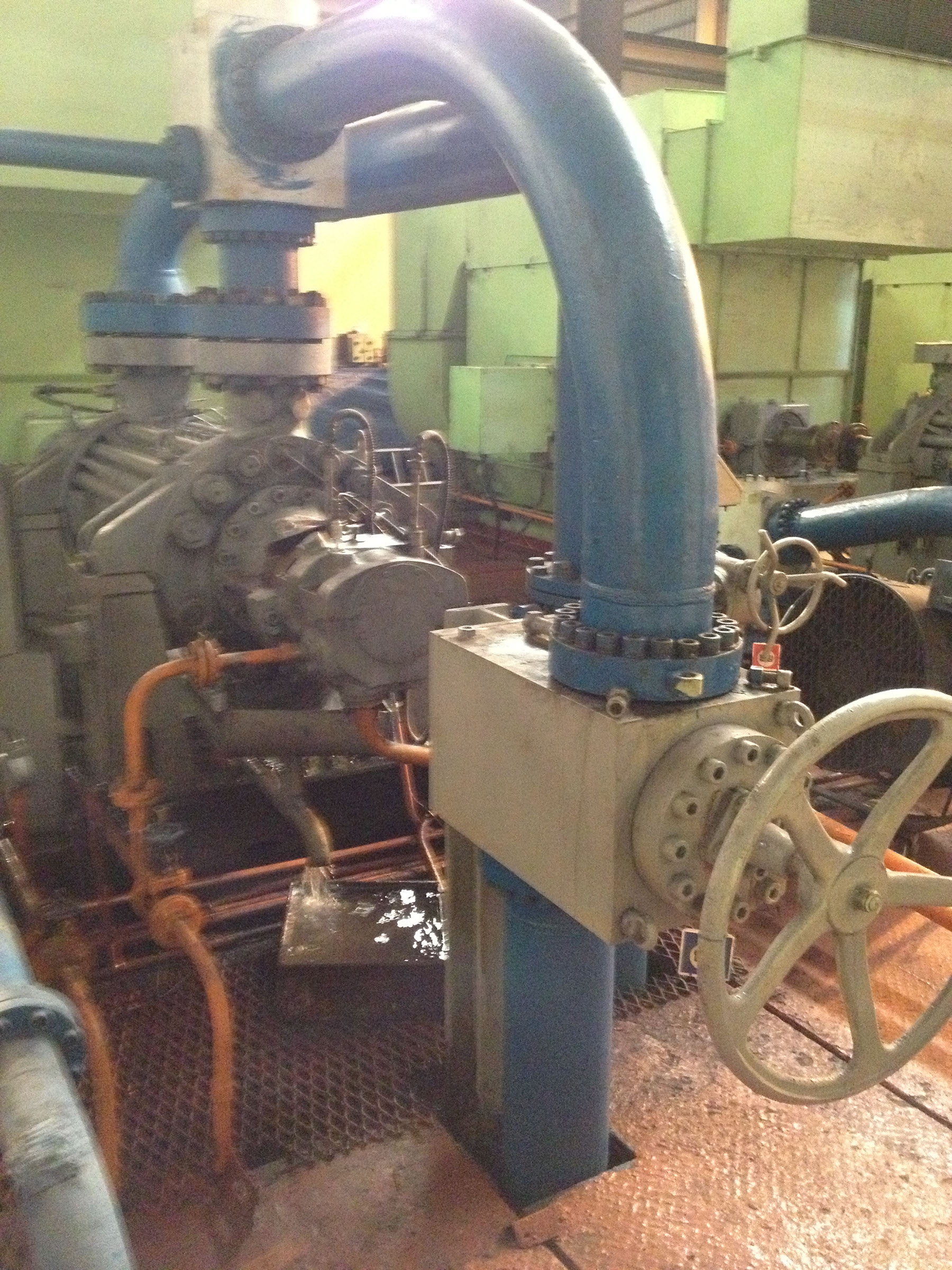

The DIN cartridge style Stop Valve operates using a manual hand wheel in combination with a manually operated pneumatic/hydraulic pilot valve and piston. The pilot valve controls the movement of the piston to open and close the valve. The manual hand wheel is used to provide a positive lock down of the valve.
If Elwood's standard line of Stop Valves does not fit your system's requirements, please request a custom design and our team will design the valve to fit your needs!
Sizes 2" through 10"
Capacities to 3,400 GPM (13,000 LPM)
Working pressures to 6,000 psi (414 bar)
Designed to operate with low viscosity fluids and raw water
