Decoking Control Valves
With experience in refinery applications dating back to the late 1930s, Elwood continues to develop and manufacture modern decoking control valve solutions. Our spindle and cartridge decoker designs are engineered for demanding service and can be customized to meet the specific requirements of your application.
Elwood continues to advance decoking valve technology with modern designs focused on performance, reliability, and application flexibility. Our decoking control valves are engineered for demanding refinery service and can be configured to meet the specific requirements of each application.

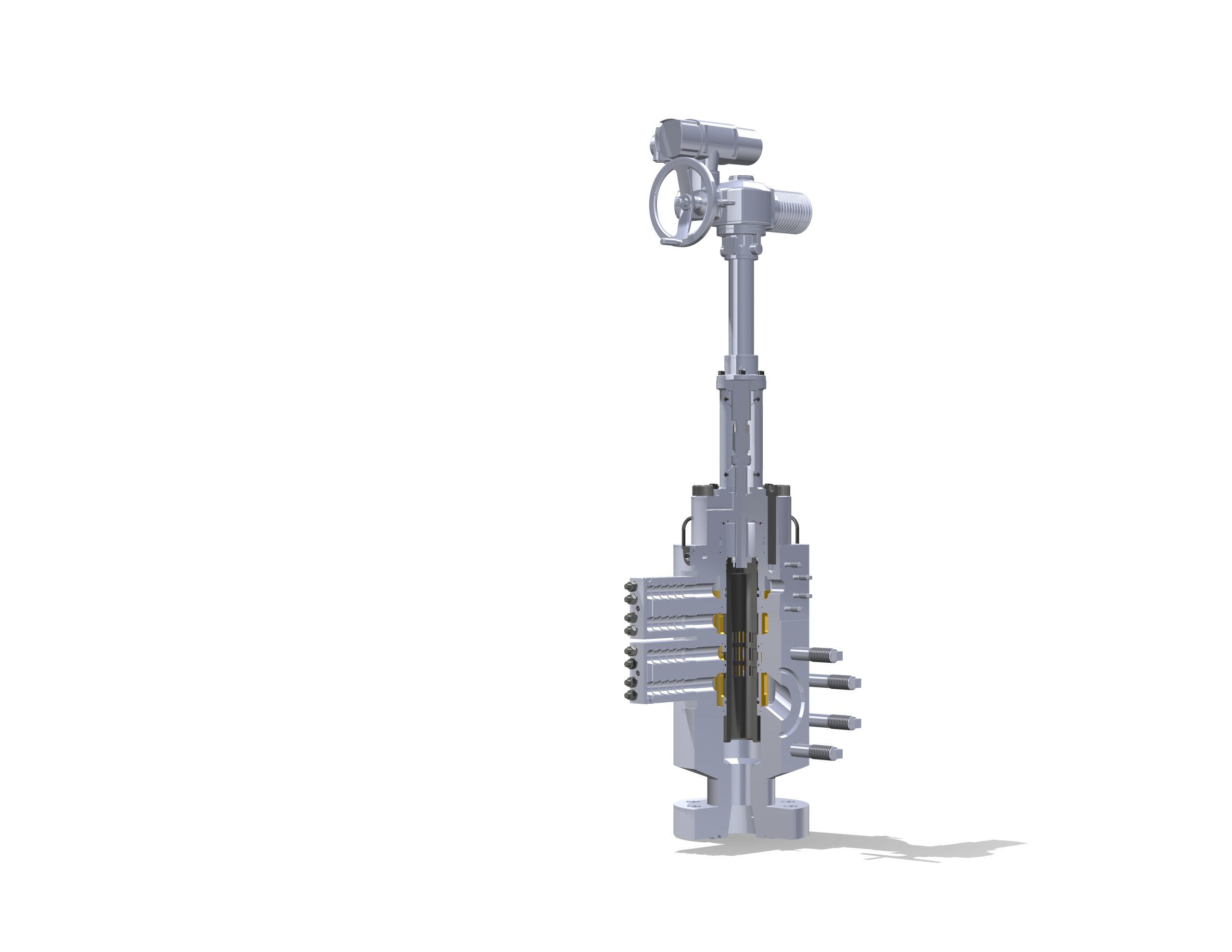

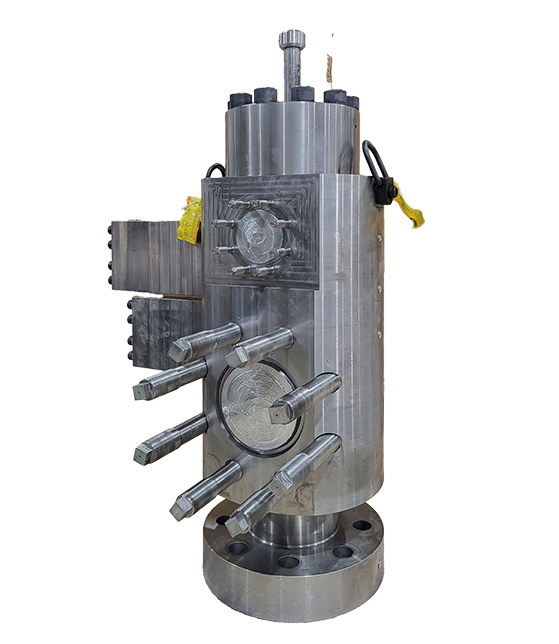

Balanced Spool Design
Elwood’s Decoking Valves over the years have added many beneficial characteristics to the design.
Standard Features
- Electric Actuation Standard – Wide range of explosion proof ratings. Hydraulic or Pneumatic actuation available upon request.
- Radially Ported Plunger Design – Naturally balanced with minimal force required for mode transitions
- Orificing – Application specific. Easily accessed for service.
- Simplicity By Design – Easy to understand, easy to troubleshoot, and easy to maintain. Only 2 main components achieve bypass, prefill, and full flow operations.
- Installation – Common industry footprint and operation logic.
Key Specifications
Max Operating Pressure – 6000 PSI (420 Bar)
Max Operating Flow – 2000 GPM (7600 LPM)
Max Water Temp – 212° F (100° C)
Inlet Connection – 6″ – 2500# Ring Type Joint
Outlet Connection – 6″ 2500# Ring Type Joint
Bypass – 3″ – 300# Raised Face

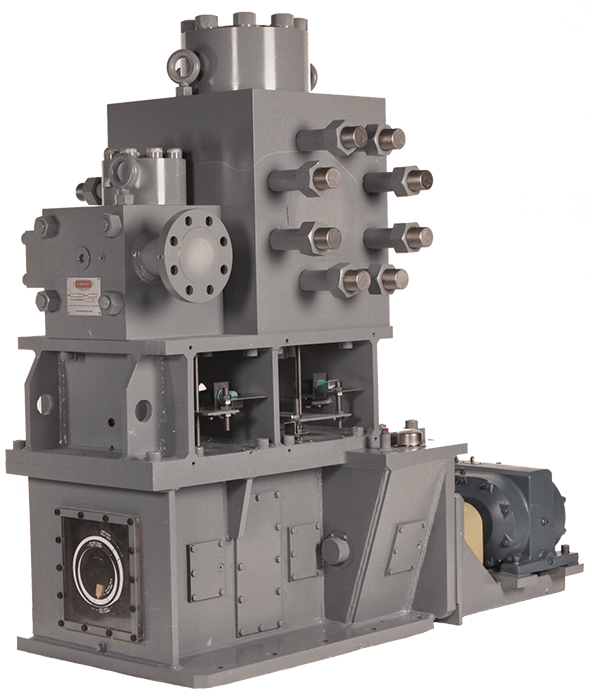

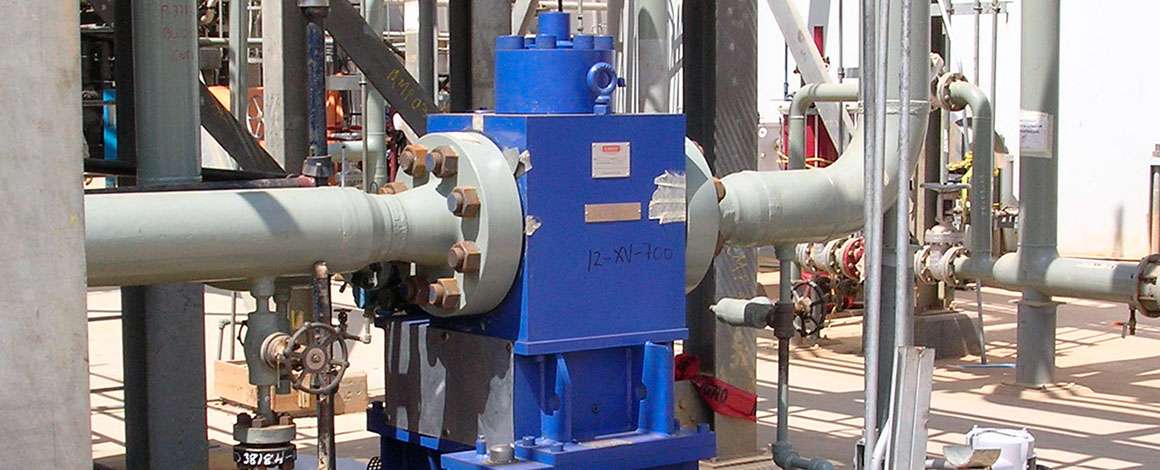

Elwood’s Decoking Valves over the years have added many beneficial characteristics to the proven design. These include:
- V-Notch Technology
- Shield Seat Design
- Ease of Maintenance
- Customized valve fit specific to your needs
Key Specifications
Max Operating Pressure – 6000 PSI (420 Bar)
Max Operating Flow – 2000 GPM (7600 LPM)
Max Water Temp – 212° F (100° C)
Inlet Connection – 6″ – 2500# Ring Type Joint
Outlet Connection – 6″ 2500# Ring Type Joint
Bypass – 3″ – 300# Raised Face
