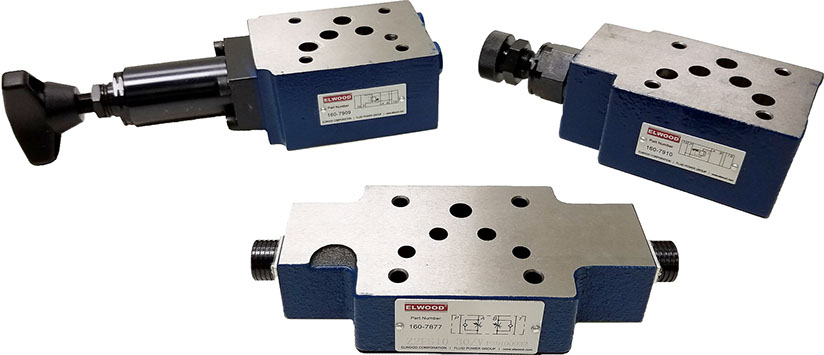

Introducing Elwood's
GS-Series Valves
While Elwood has a standard product line designed
for high pressures and water and other low viscosity
fluids, we are no stranger to oil and hydrocarbon
based fluids. Our valves are production proven and
ready for your applications.
Elwood has a number of different designs to fit your
needs. Many are drop in replacements for Vickers,
Parker, Rexroth, and other conventional valve
manufacturers.
Talk to our Fluid Power Team today about the right
valves for your system.
Already know what you're looking for? Fill out our
custom valve form.
GS-Series Brochure GS-Series Cutsheet
GS-SERIES VALVES
Summary
The GS Series Pilot Operated Check Valve is a releasable check valve used for leakage-free blocking of one or two actuators.
Features
- Sandwich Plate Design
- Carbon Steel
- D03 & D05 Mounting Patterns
- Various Cracking Pressures
Options
- Corrosion Resistance
- Locating Hole / Locating Hole with Locking Pin ISO -3x8-St
- NBR or FKM Seals
Special Versions
- Control open by external port G1/4 (only version "A" & "B")
- with pre-opening
- Control spool unloaded to port T
- with pre-opening & control open from channel P
Request a quote below and include any custom requirements if needed.
All inquiries are sent to info@elwood.com.
Summary
The GS Series Double Throttle Check Valves limit flow in one direction and allow free return flow in the opposite direction by aligning two throttle checks symmetrically. This application is used to limit the main or pilot flow of one or two actuator ports.
Features
- Sandwich Plate Design
- Carbon Steel
- D03 & D05 Mounting Patterns
- Meter-in & Meter-out Throttling
-
Actuator Velocity Adjustment
- Install between main valve and subplate
- Limits main valve flow
-
Pilot-Operated Directional
- Install between pilot and main valve
- Limits pilot valve flow
Options
- Corrosion Resistance
- Locating Hole
- NBR or FKM Seals
-
Actuator Velocity Adjustment
- Install between main valve and subplate
- Limits main valve flow
-
Pilot-Operated Directional
- Install between pilot and main valve
- Limits pilot valve flow
Request a quote below and include any custom requirements if needed.
All inquiries are sent to info@elwood.com.
Summary
The GS Series Pilot Operated Check Valve is a releasable check valve used for leakage-free blocking of one or two actuators.
Features
- Sandwich Plate Design
- Carbon Steel
- D03 & D05 Mounting Patterns
- Various Cracking Pressures
Options
- Corrosion Resistance
- Locating Hole / Locating Hole with Locking Pin ISO -3x8-St
- NBR or FKM Seals
Special Versions
- Control open by external port G1/4 (only version "A" & "B")
- with pre-opening
- Control spool unloaded to port T
- with pre-opening & control open from channel P
Request a quote below and include any custom requirements if needed.
All inquiries are sent to info@elwood.com.
